Helios Tube

Shorter tube for more portability and flexibility.

24W
RGBMA
8 Pixels
Wired DMX
CRMX

Helios Tube has all the features of the popular Titan Tube while offering a smaller format. It allows mounting in areas where a Titan Tube wouldn’t fit, and also increases portability. This LED lighting Tube has 8 pixels, half the brightness of the Titan tube and just over half its length. Colors and brightness are perfectly matched to those of the Titan Tube’s.

Battery
App
Wireless DMX
IP65
Titan LED EngineBluetoothBridge

Model Comparison

Dimensions

Ø42 mm x 550 mm | Ø1.6” x H21.7”

Ø42 mm x 1035 mm | Ø1.6” x H40.7”

Ø42 mm x 2031 mm | Ø1.6” x 79.9”

LED Engine

Titan LED Engine (RGBMintAmber)

Titan LED Engine (RGBMintAmber)

Titan LED Engine (RGBMintAmber)

Total LED Power

36 W

72 W

144 W

Light Output*

1340 lm

2900 lm

5800 lm

Pixel

8

16

32

CRI(Ra)/TLCI 3200-6500k*

≥96

≥96

≥96

Wired DMX

Yes

Yes

Yes

CRMX Receiver

Built-in

Built-in

Built-in

IP Rating

IP65

IP65

IP65

Mounting accessories

How to control

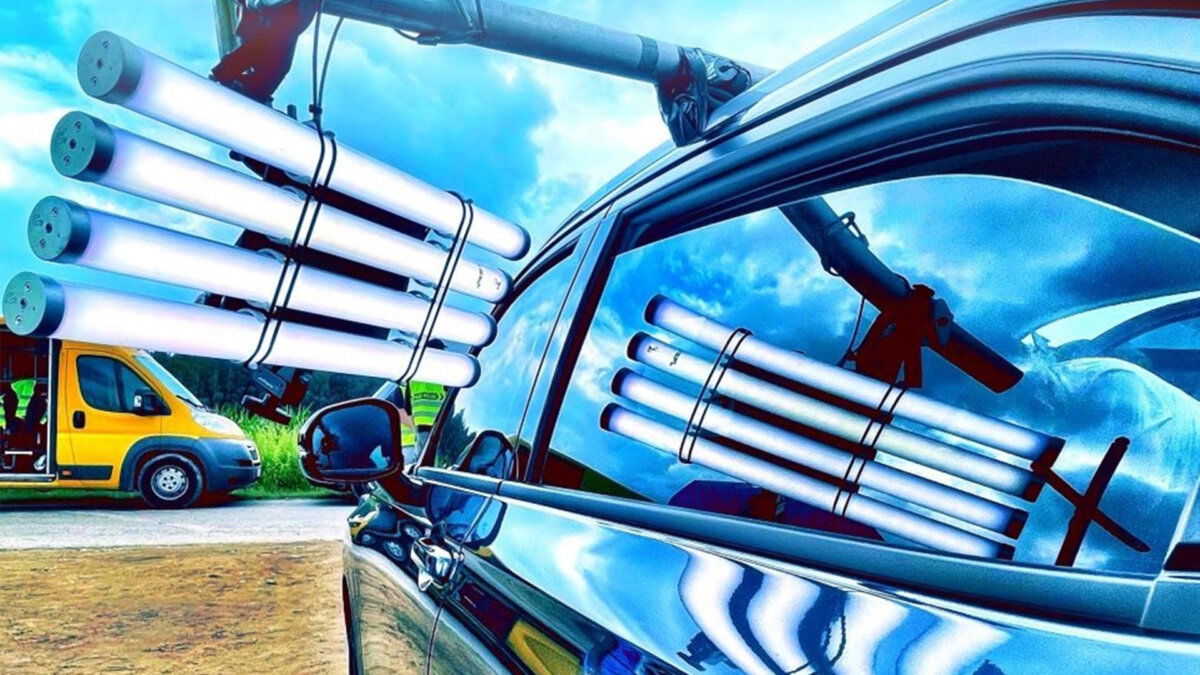

Built-in Battery

Helios Tube has a powerful built-in battery. With our “seamless runtime” technology, it can be set to a specific length of time to ensure that your lights won’t run out of battery while still getting the maximum brightness. When displaying white light in maximum brightness, it will last 1 h 45 min.

How to wire

Essential accessory for Helios Tubes. Use it to charge or install up to 10 Titan Tube or Helios Tube for longer operation. Also allows wired data transfer from DMX, Artnet and sACN sources.

Alternatively, the PowerBox 2x86W is compatible, but only connects 2 lights at a time.

Connects Titan Tube & Helios Tube to their PowerBox. Groundbreaking technology enables power and data to both run through a single cable for maximum convenience.

Available in 5m, 10m and 15m (15 ft, 30 ft, 45 ft)

A data injector used to establish a wired DMX connection to Hyperion Tubes. It is also useful for Titan Tube and Helios Tube if no Titan PowerBox is available, or to work with multiple DMX universes on one PowerBox. Unlike the PowerBox it does not have a built-in power supply but requires one Titan or Hyperion PSU per tube.

AC to DC power converter to charge 1 Titan Tube or Helios Tube or to wire it for a longer installation. Usable in most countries since it comes with EU, US, UK adapters and accepts 110-240VDC. 1 m cable length and 24VDC, 2A output.

Add 5 m cable length to your Titan, Helios or Hyperion power supply. Male to female cable.

Available as

Seamless Runtime

To ensure that your light’s batteries last throughout your entire production, you can select how many hours they have to last. This limits the light’s output to a level where you get the maximum brightness to achieve the selected runtime.

Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat. Turn multiple programs and lights into scenes.

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Anti-Theft

When enabled, the integrated theft alarm gives visual and audible alarm if lights are being moved. In addition, the AsteraApp also shows the alarm.

Emergency Light

With this innovative feature, the lights can double as a battery-powered emergency light. When activated, the fixture can detect power loss and instantly switches to bright white light to illuminate the venue.

Award

Accessories by DoP Choice

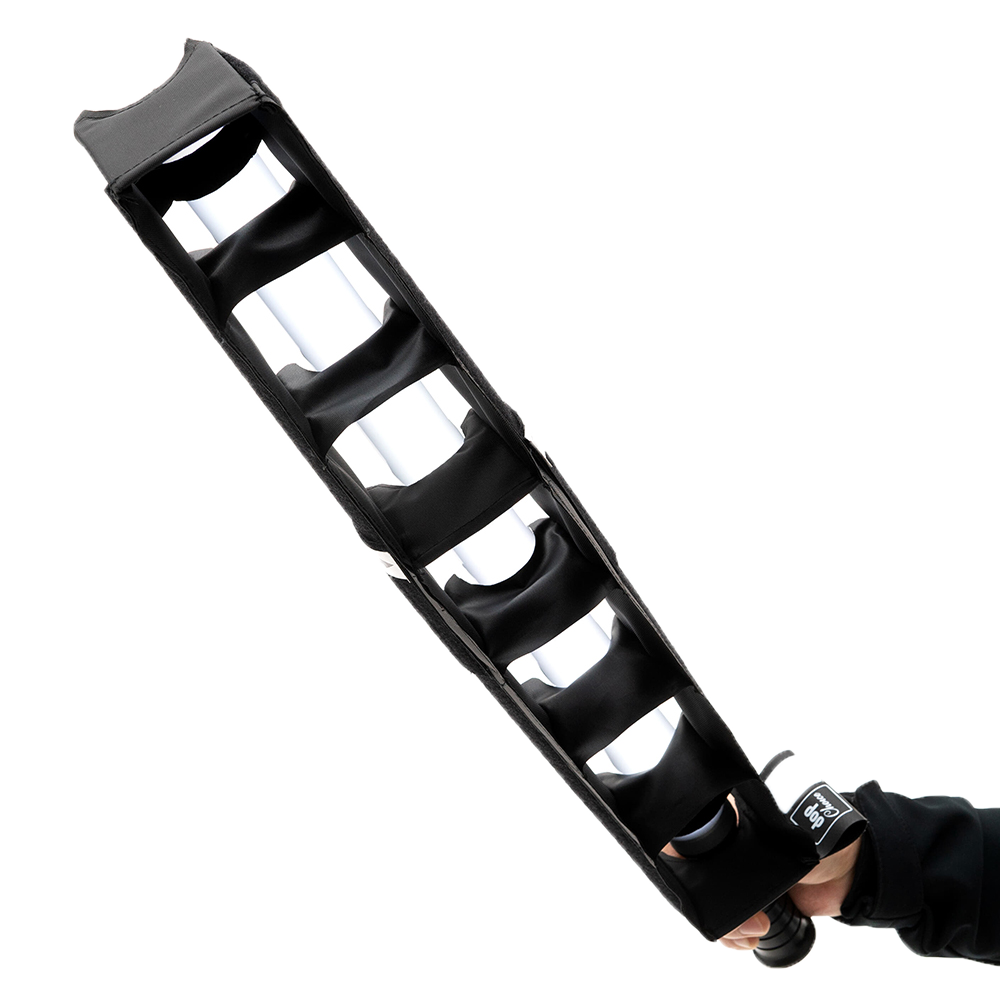

SnapGrid for Helios Tube

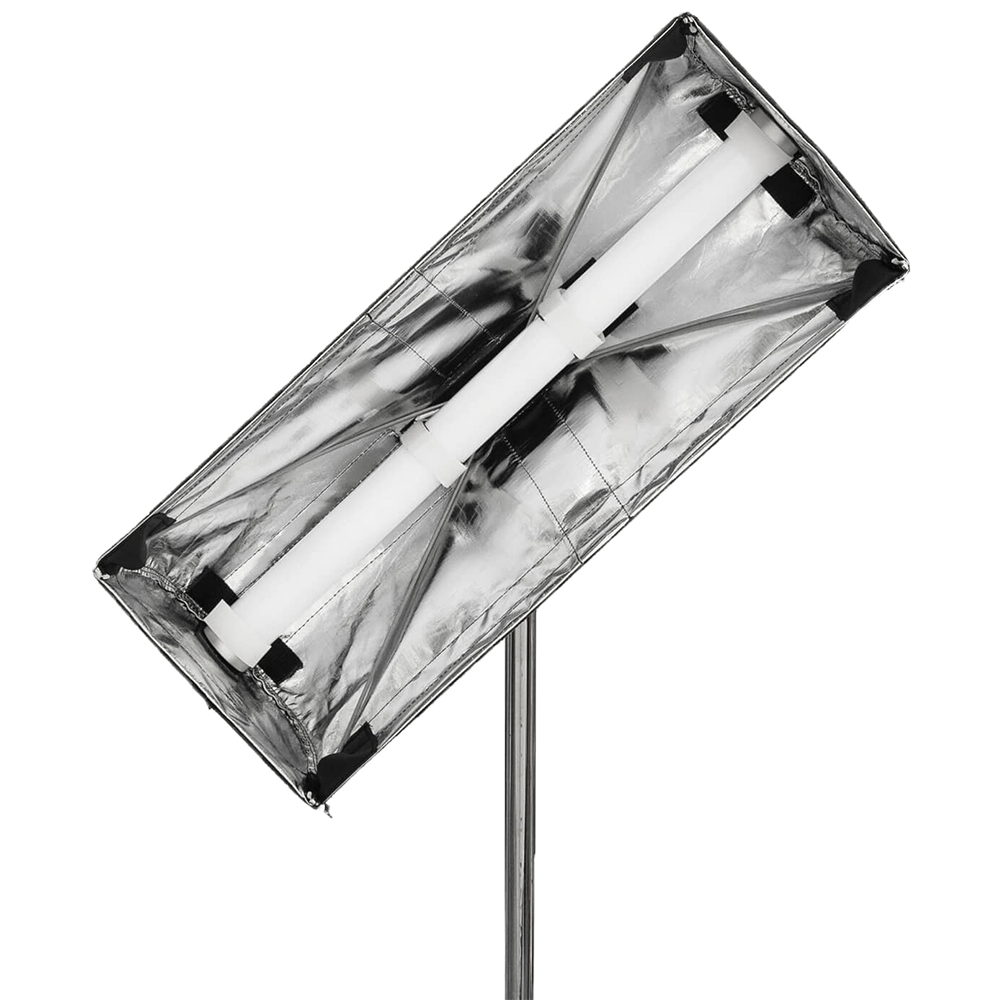

SnapBag for 1 Helios Tube

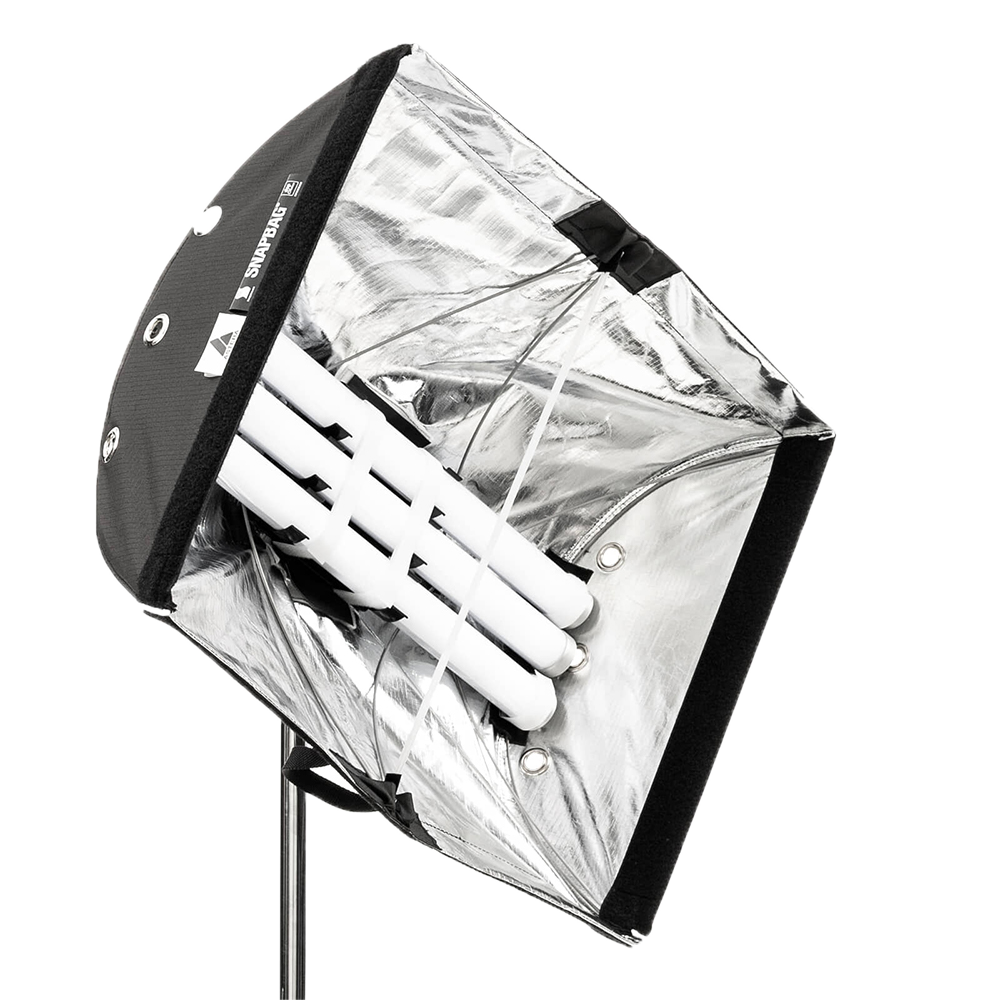

SnapBag for 3 Helios Tubes
