Titan PowerBox

The Titan PowerBox is designed to charge tubes in their cases with short power cables. In addition, the PowerBox can be taken out of the case and used for longer installations. For this, additional Titan Power/Data Combination Cables are required.

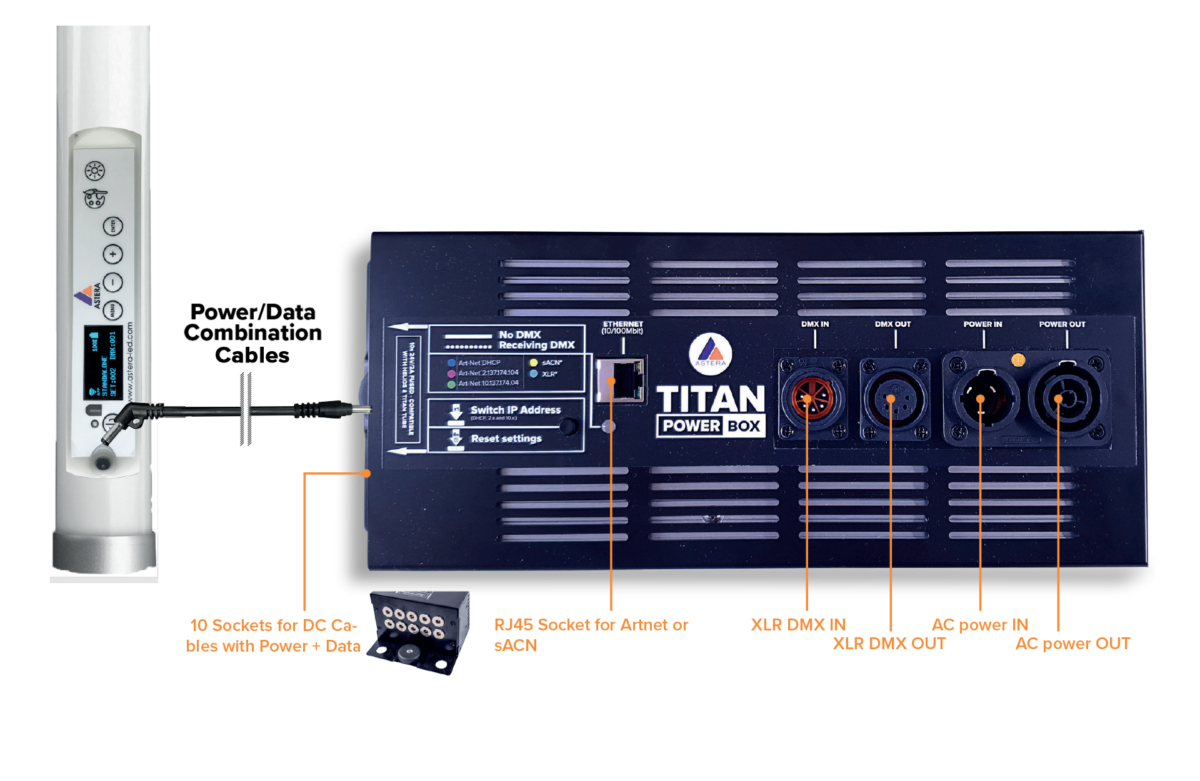

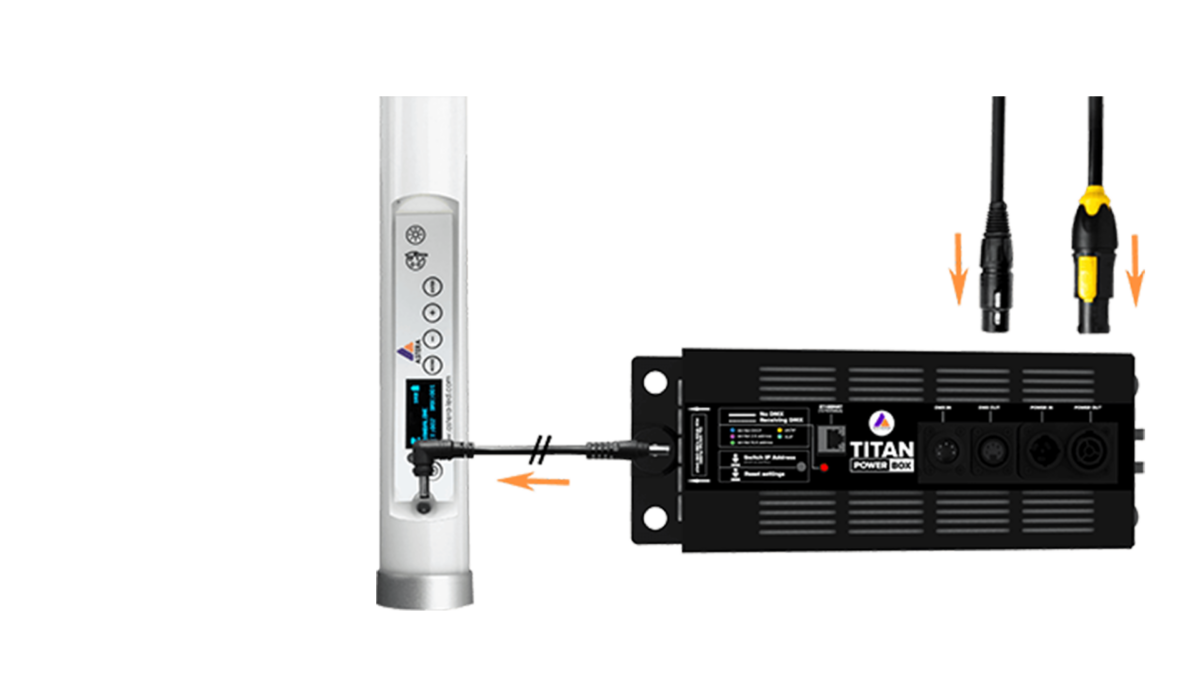

Titan PowerBox is designed to supply up to 10 tubes with power and data. To achive this, take the PowerBox out of the Charging Case, connect a Powercon cable and either DMX, Artnet or sACN. Use the optionally available Titan Power/Data combination cable to connect a tube.

Each PowerBox can control 1 DMX universe which is 10 Titan Tubes with 16 pixels each in RGB mode (3 channels per pixel). If you need more channels, e.g. because you are using 7 channels per pixel you can add a DataLink for universe 2. Power can be taken from the PowerBox and passed through DataLink.

This hybrid cable can deliver 24 VDC of power as well as DMX data to the tubes. It is available in 3 lengths: 5m, 10m, 15m (15’, 30’, 45’).

It uses an 135° connector on one end which is designed so the tubes can be mounted at a wall with TubeHolders.

An alternative hybrid cable can deliver 24 VDC of power as well as DMX data to the lights. It is available in 4 lengths: 200mm, 5m, 10m, 15m (15’, 30’, 45’, 8").

Unlike the Titan Power/Data Combination Cable, it has watertight 90° connectors on both ends, which match newer models such as PixelBrick and HydraPanel. The cable is compatible with Titan Tube and Helios Tube, but since IP65 is not supported and the connector is more bulky, we recommend the Titan Power/Data Combination Cable.
