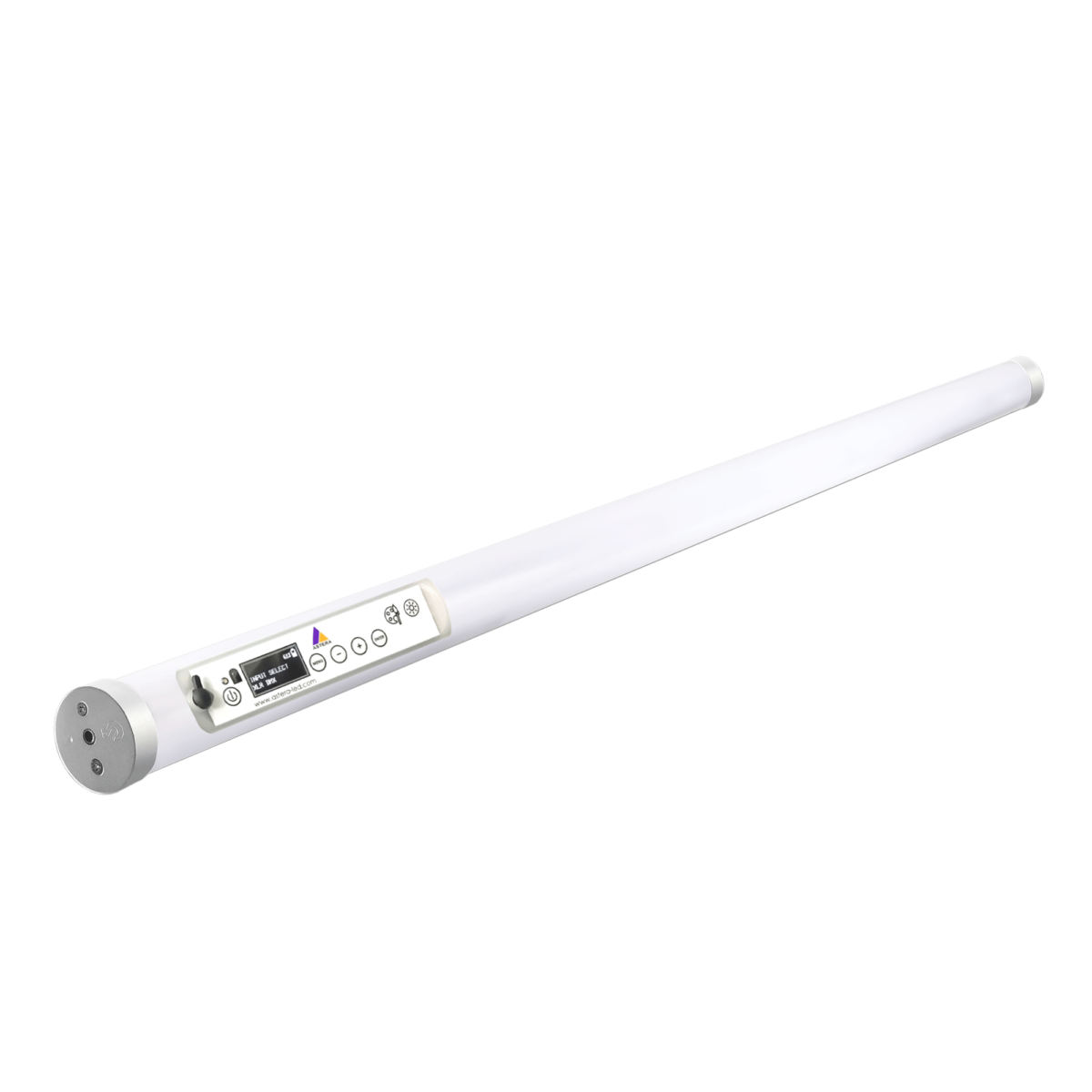

Titan Tube

The ultimate LED tube for film, studio, stage and events.

48W
RGBMA
16 Pixels
Wired DMX
CRMX

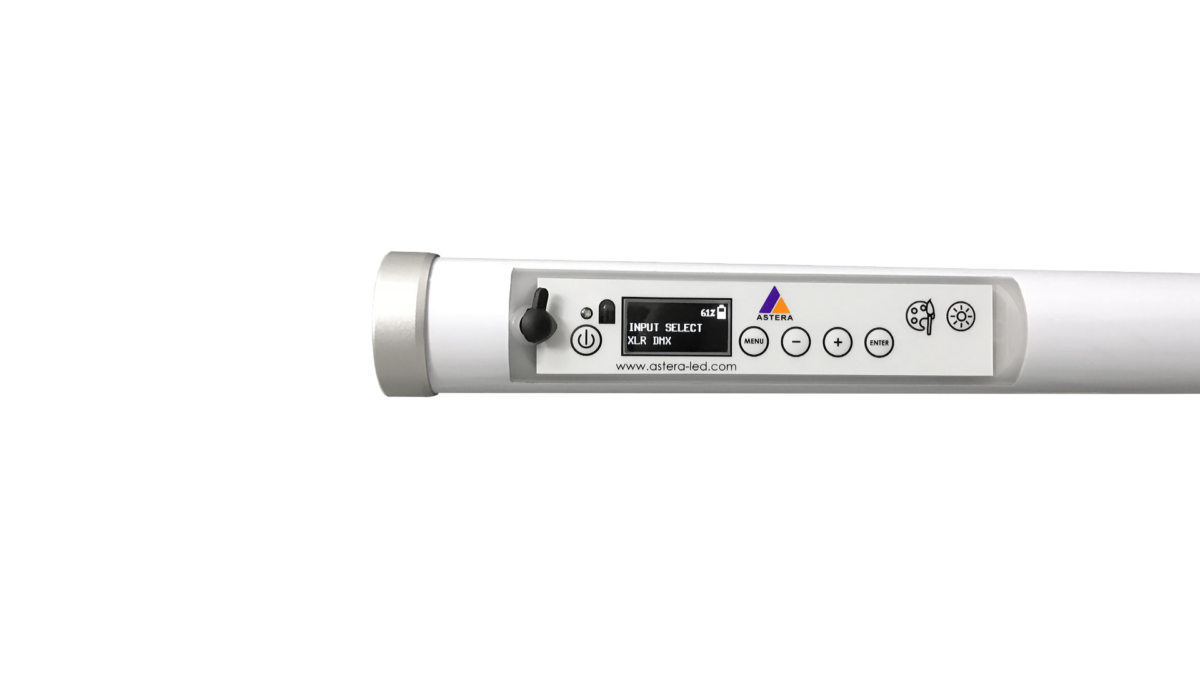

Titan Tube is the ultimate LED tube for filmmakers, studios, event technician and any creative person. It emits powerful, tunable whites with ultra-high color rendering as well as colored light which can be applied to individual pixels or the whole tube. The tube offers unlimited range of usage; indoor or outdoor, AC-powered or on battery, on the go with the AsteraApp, with wired or wireless DMX.

Battery
App
Wireless DMX
IP65
Titan LED EngineBluetoothBridge

Model Comparison

Dimensions

Ø42 mm x 550 mm | Ø1.6” x H21.7”

Ø42 mm x 1035 mm | Ø1.6” x H40.7”

Ø42 mm x 2031 mm | Ø1.6” x 79.9”

LED Engine

Titan LED Engine (RGBMintAmber)

Titan LED Engine (RGBMintAmber)

Titan LED Engine (RGBMintAmber)

Total LED Power

36 W

72 W

144 W

Light Output*

1340 lm

2900 lm

5800 lm

Pixel

8

16

32

CRI(Ra)/TLCI 3200-6500k*

≥96

≥96

≥96

Wired DMX

Yes

Yes

Yes

CRMX Receiver

Built-in

Built-in

Built-in

IP Rating

IP65

IP65

IP65

Mounting accessories

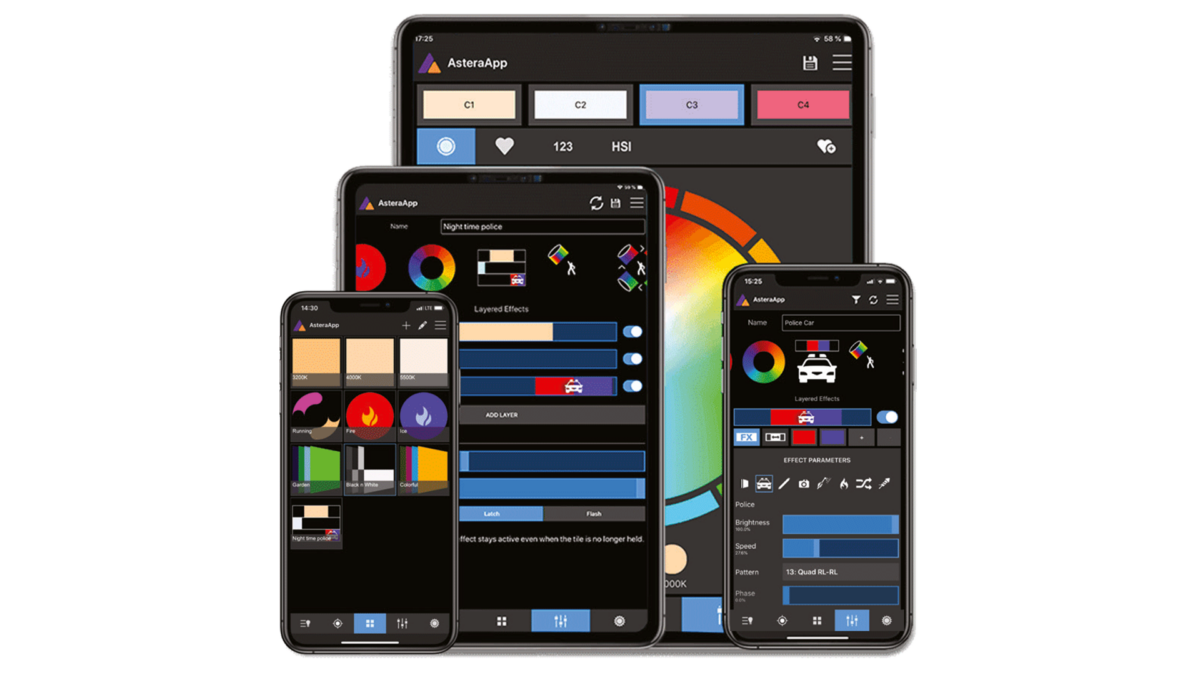

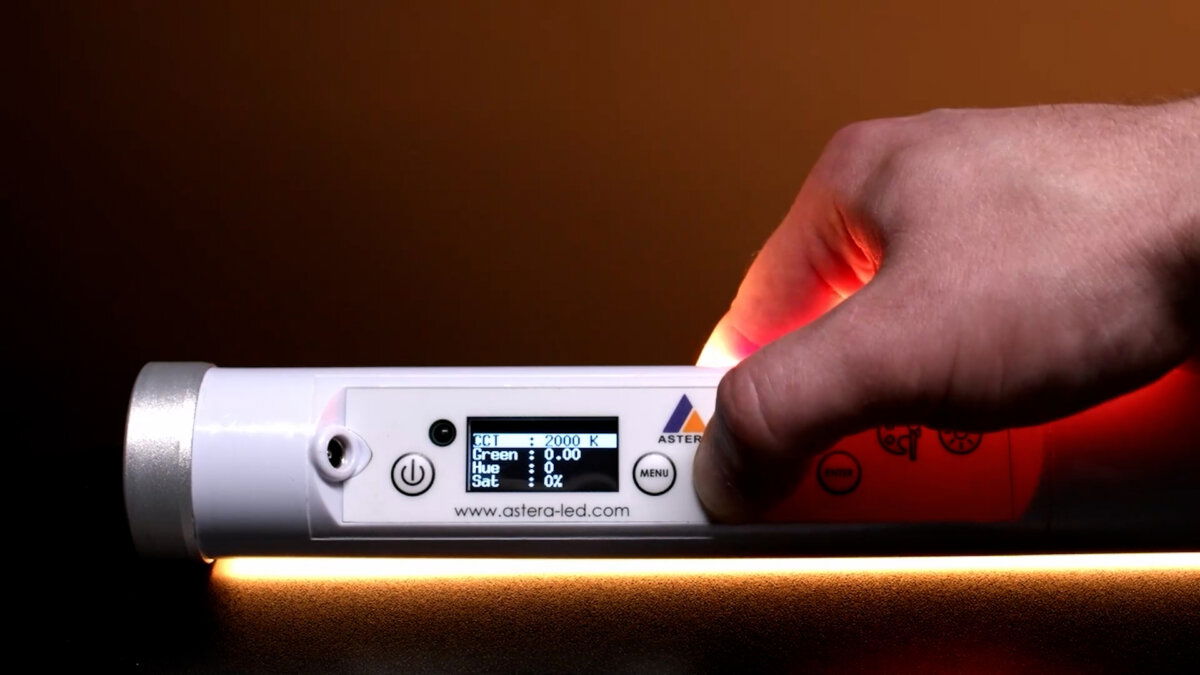

How to control

Built-in Battery

Titan Tube has a powerful built-in battery. With our “seamless runtime” technology, it can be set to a specific length of time to ensure that your lights won’t run out of battery while still getting the maximum brightness. When displaying white light in maximum brightness, it will last 1 h 45 min.

How to wire

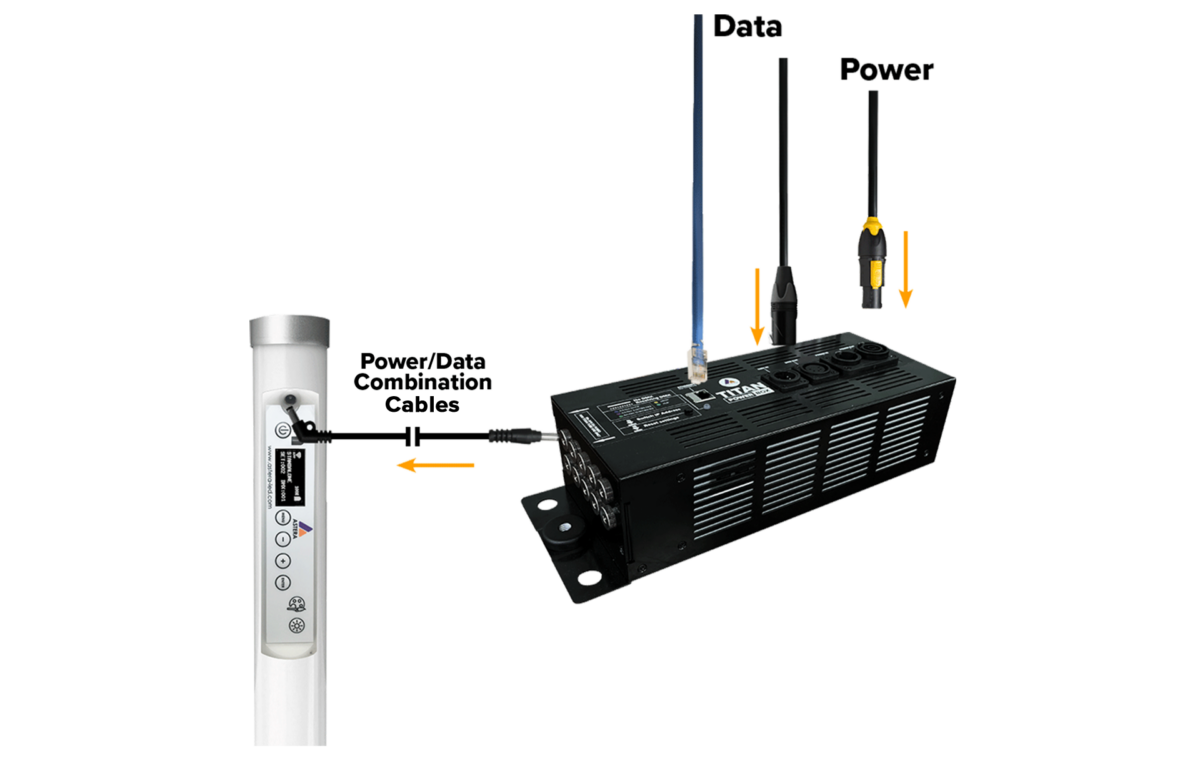

Essential accessory for Titan Tubes. Use it to charge or install up to 10 Titan Tubes or Helios Tubes for longer operation. Also allows wired data transfer from DMX, Artnet and sACN sources.

Alternatively, the PowerBox 2x86W is compatible, but only connects 2 lights at a time.

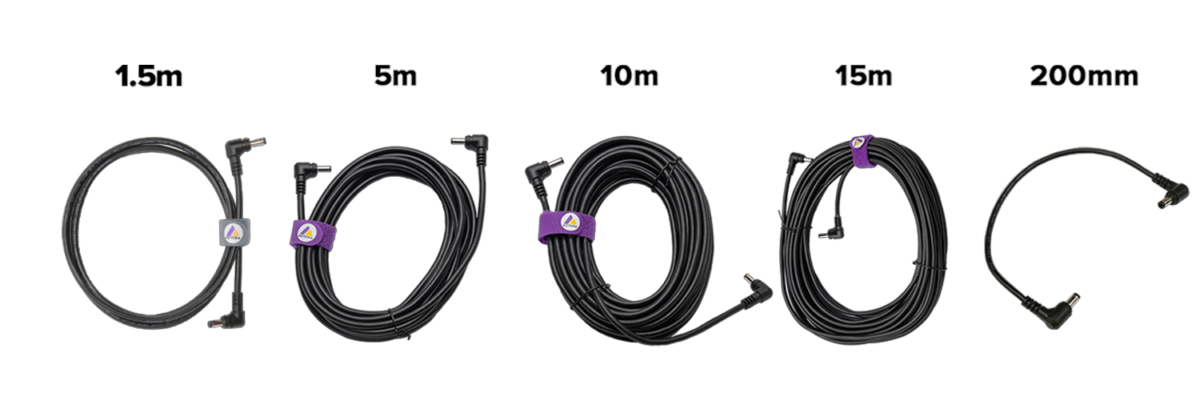

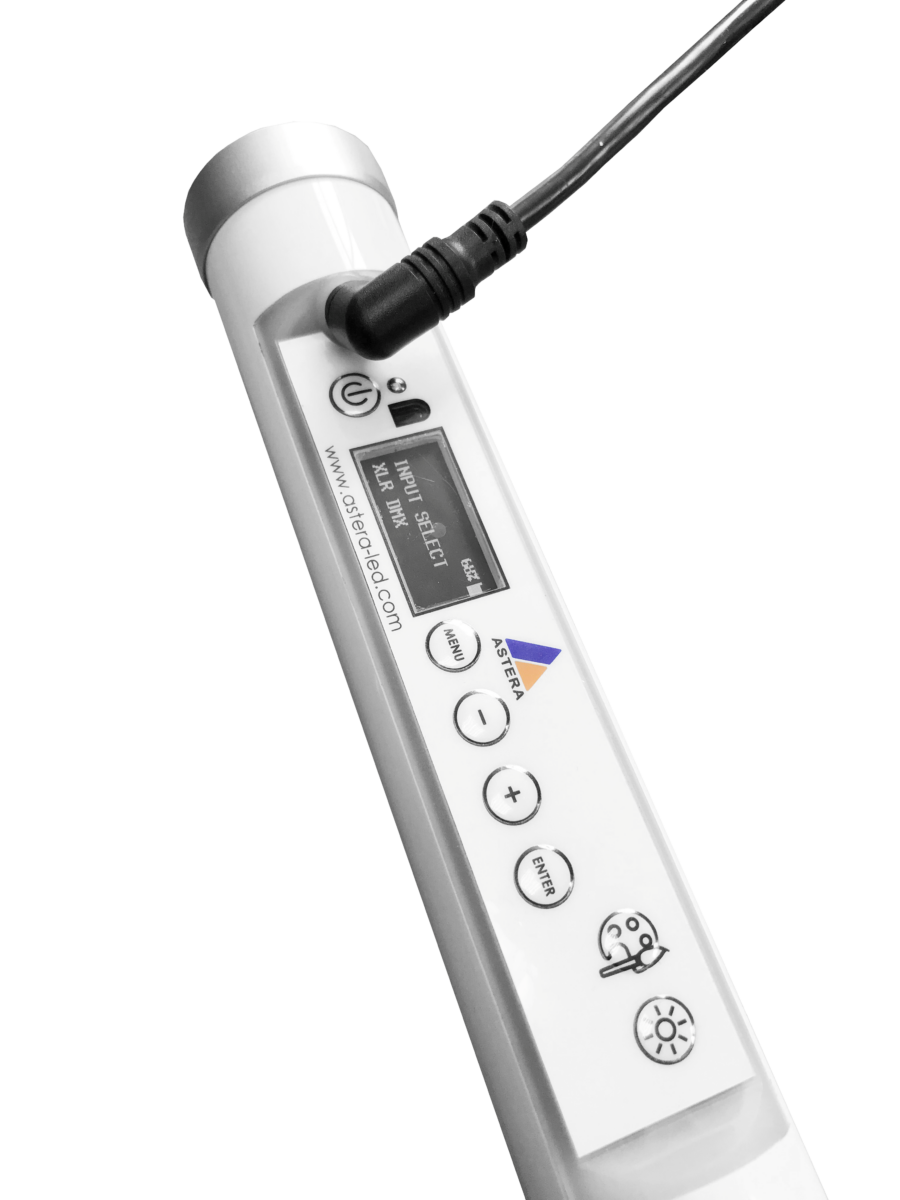

Connects Titan Tube & Helios Tube to their PowerBox. Groundbreaking technology enables power and data to both run through a single cable for maximum convenience.

Available in 5m, 10m and 15m (15 ft, 30 ft, 45 ft)

A data injector used to establish a wired DMX connection if no Titan PowerBox is available or to add another DMX universe to a PowerBox. DataLink does not have a built-in power supply, so it requires a PowerBox or single tube PSU to work.

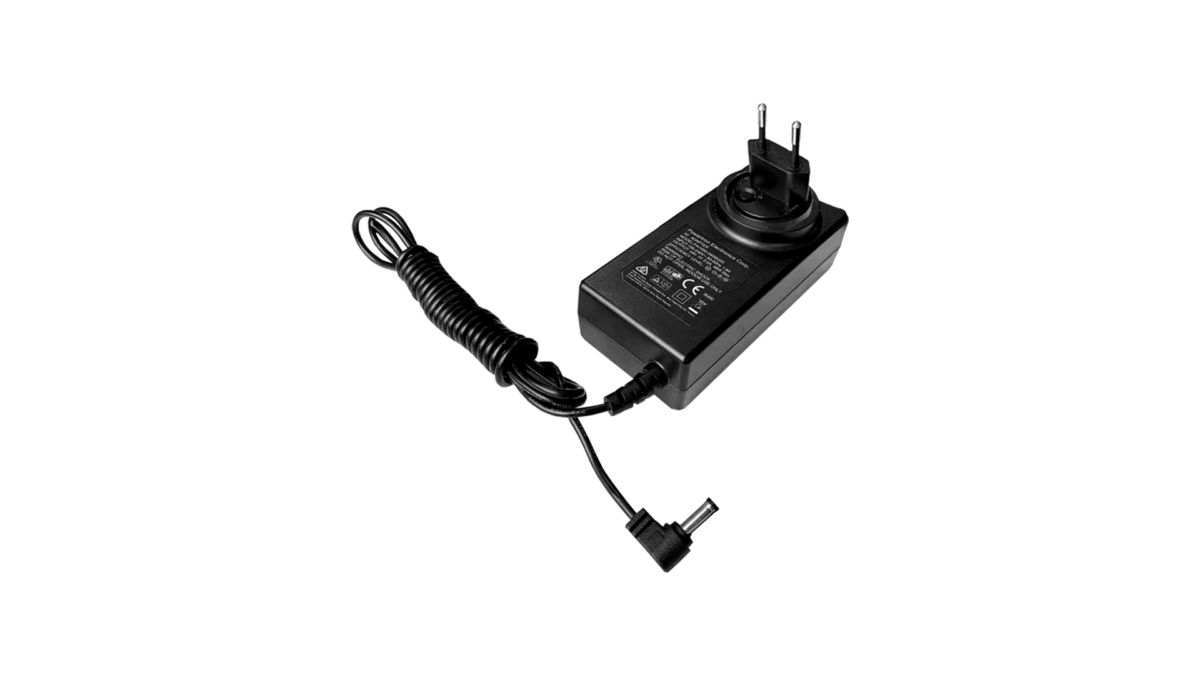

AC to DC power converter to charge 1 Titan Tube or Helios Tube or to wire it for a longer installation. Usable in most countries since it comes with EU, US, UK adapters and accepts 110-240VDC. 1 m cable length and 24VDC, 2A output.

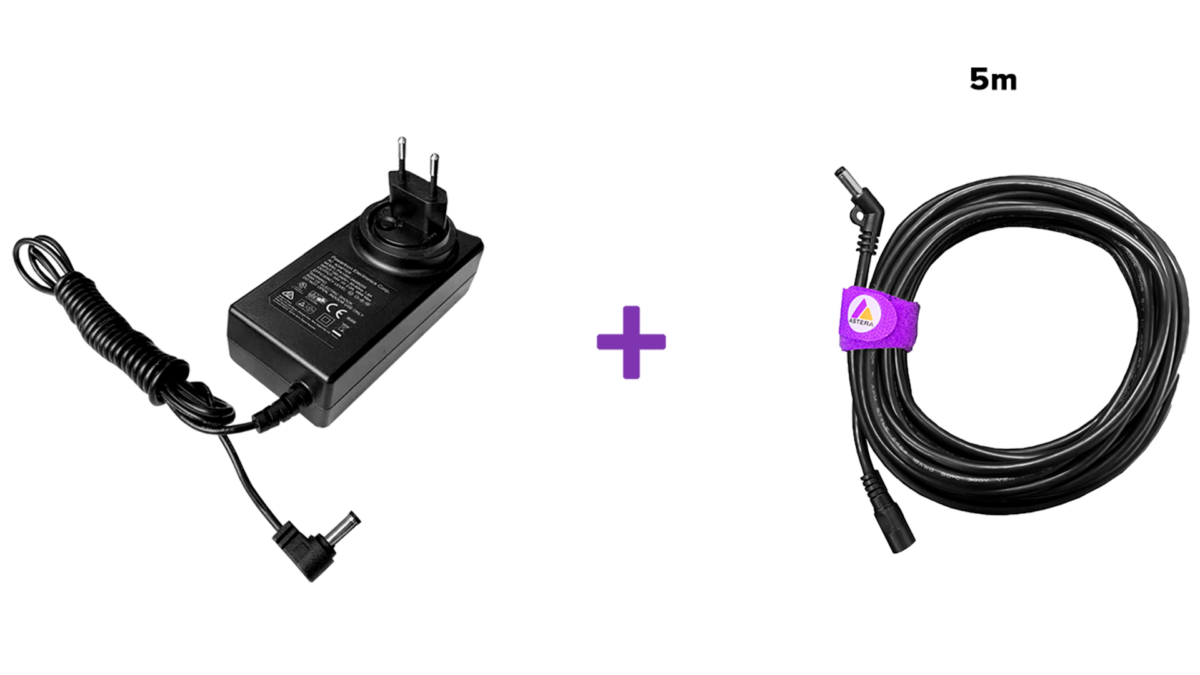

Add 5 m cable length to your Titan, Helios or Hyperion power supply. Male to female cable.

@boserup.morten
DOP: @troldmann Director: @sebastianbirk @topgunndk feat. @branco_officiel @k.westergren

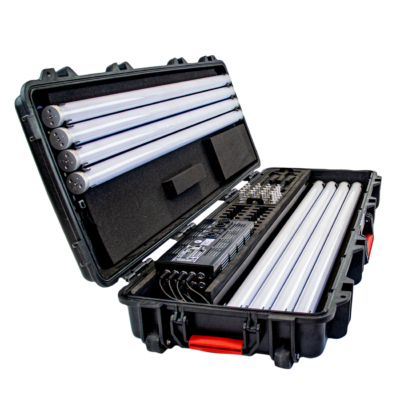

Available as

Seamless Runtime

To ensure that your light’s batteries last throughout your entire production, you can select how many hours they have to last. This limits the light’s output to a level where you get the maximum brightness to achieve the selected runtime.

Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat. Turn multiple programs and lights into scenes.

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Anti-Theft

When enabled, the integrated theft alarm gives visual and audible alarm if lights are being moved. In addition, the AsteraApp also shows the alarm.

Emergency Light

With this innovative feature, the lights can double as a battery-powered emergency light. When activated, the fixture can detect power loss and instantly switches to bright white light to illuminate the venue.

Awards

Accessories by DoP Choice

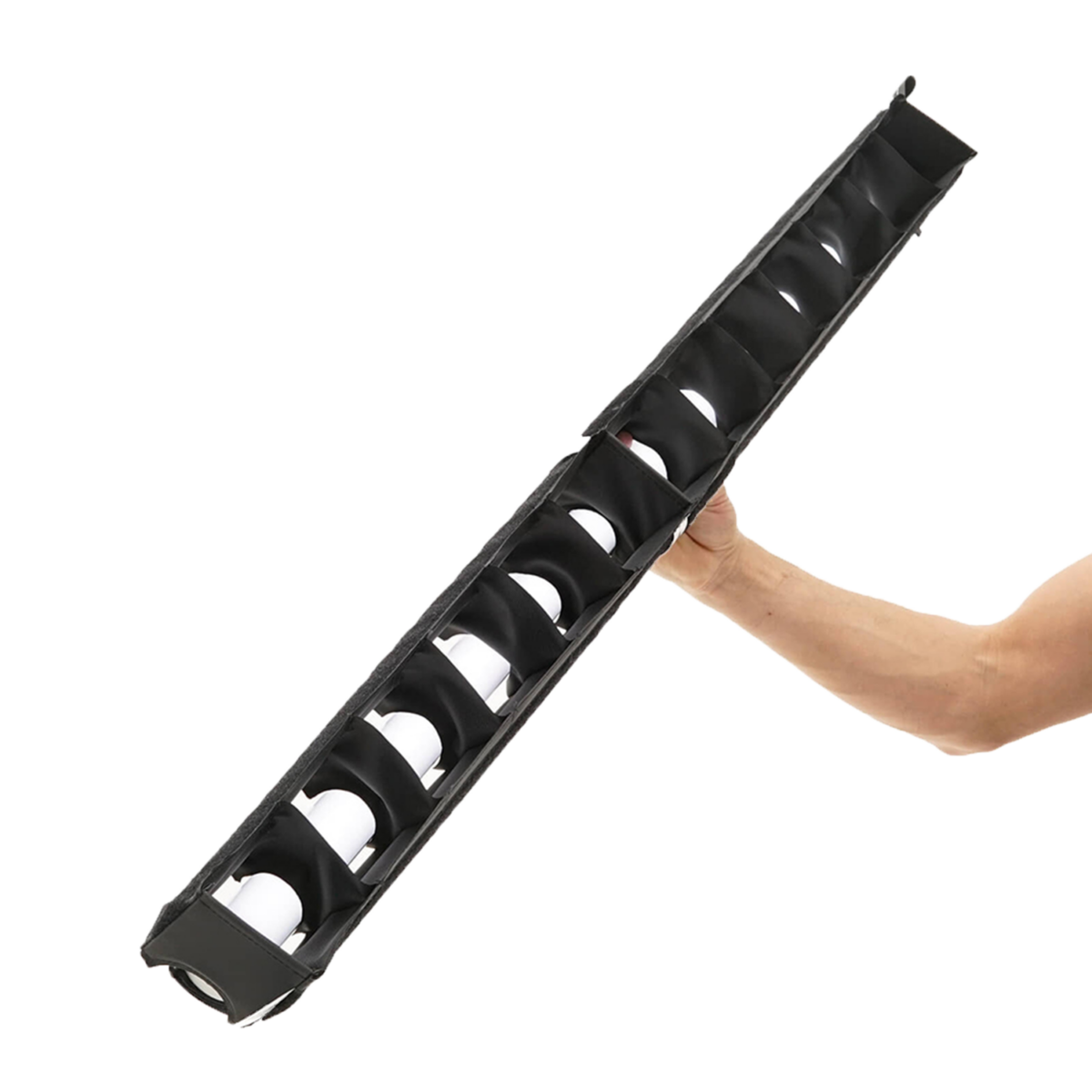

SnapGrid for Titan Tube

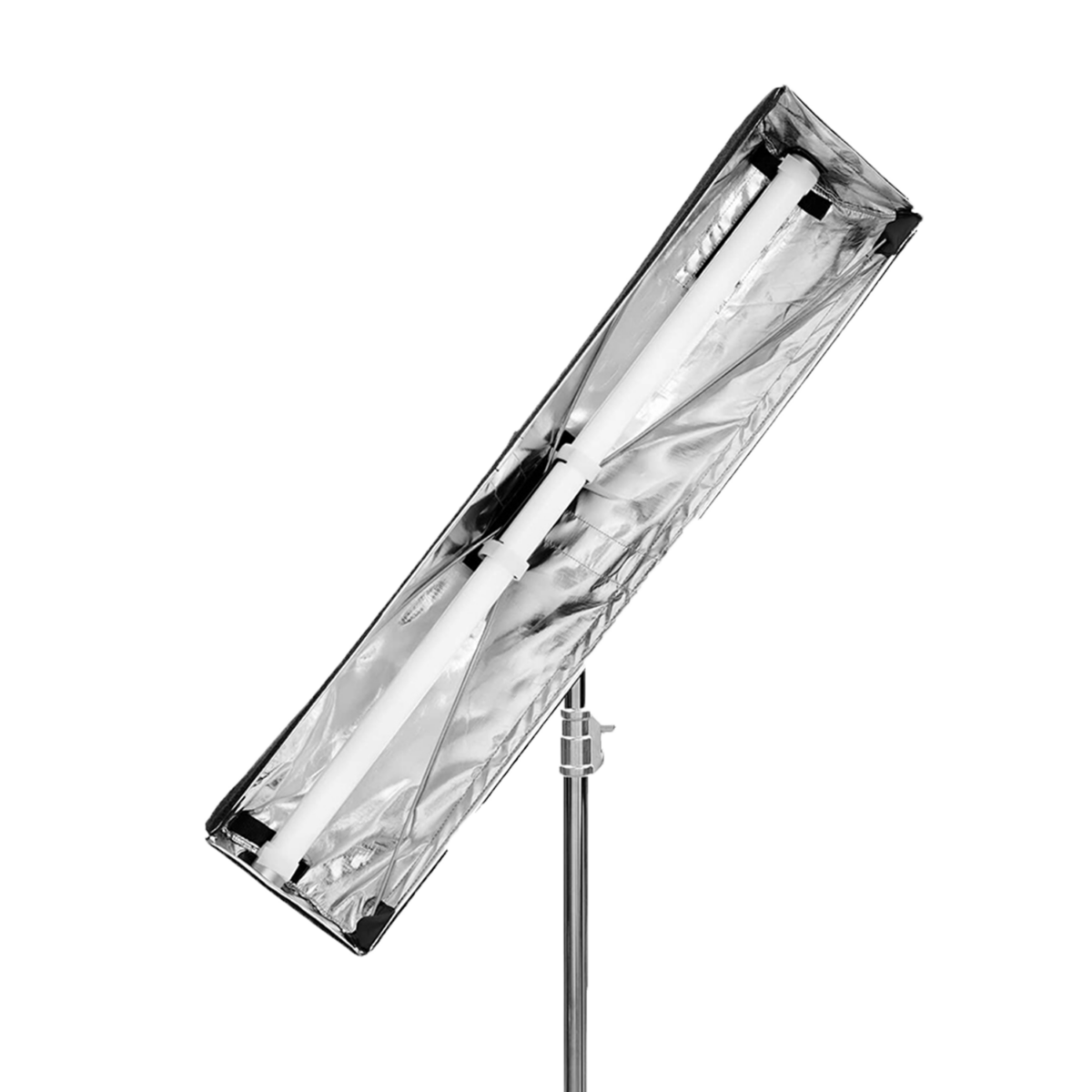

SnapBag for 1 Titan Tube

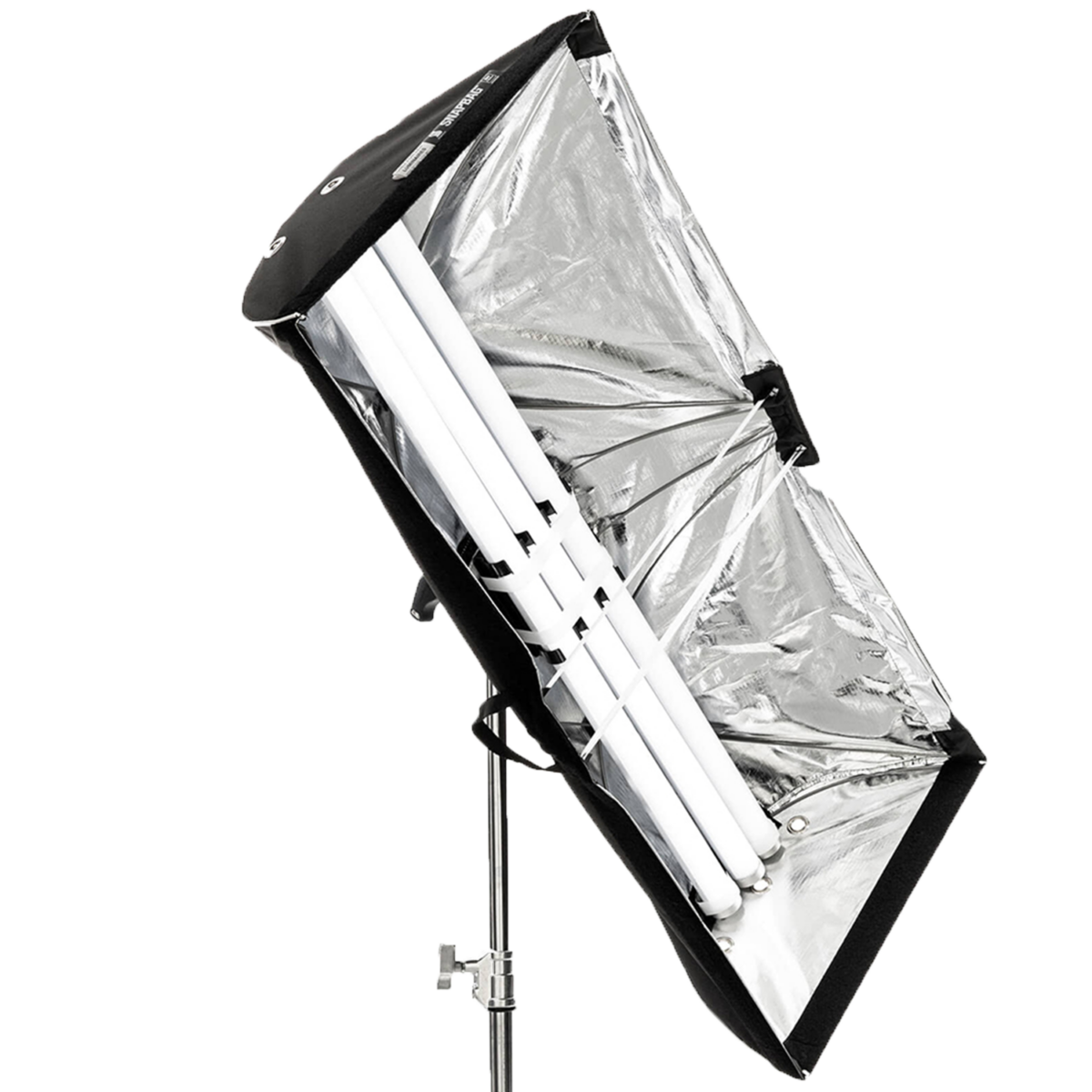

SnapBag for 3 Titan Tubes

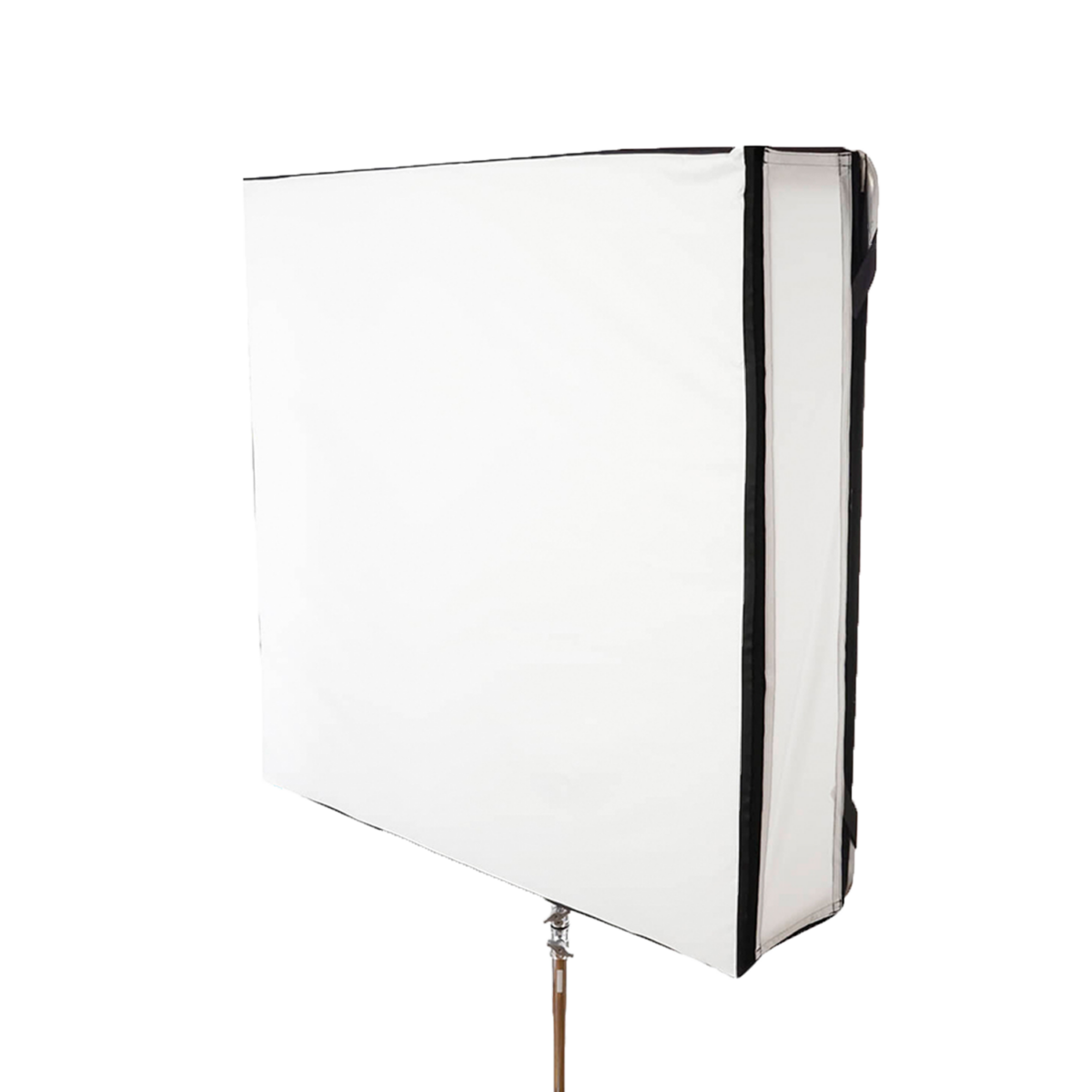

SnapBox for 8 Titan Tubes

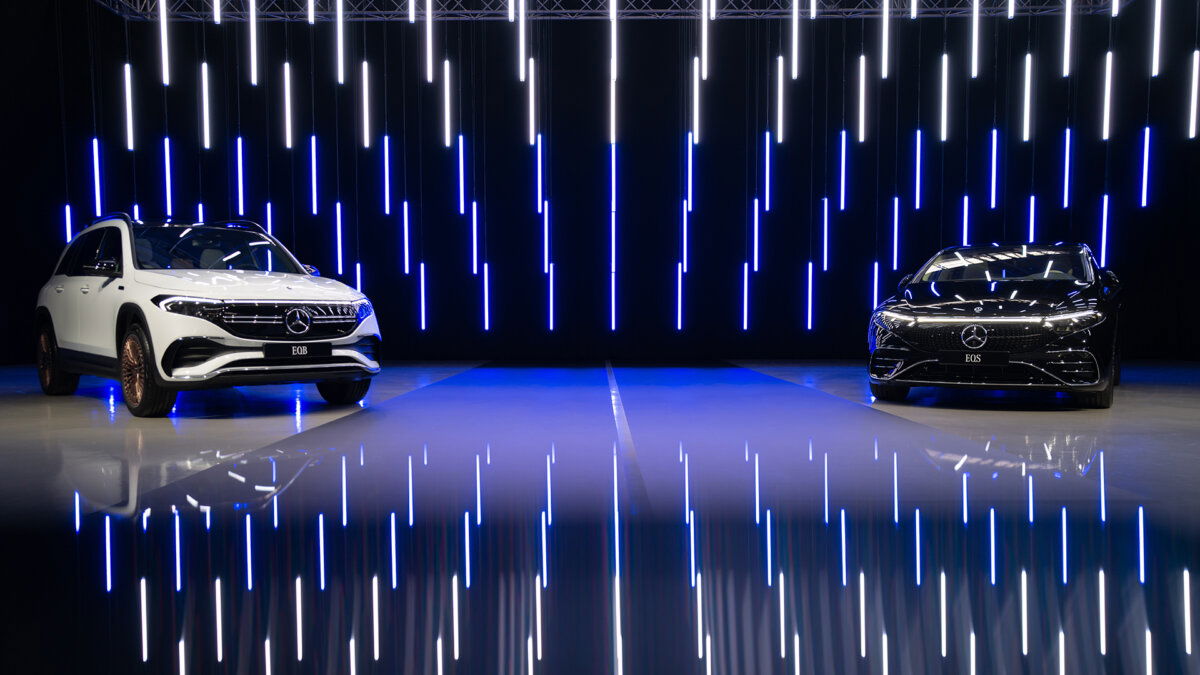

Magna Events

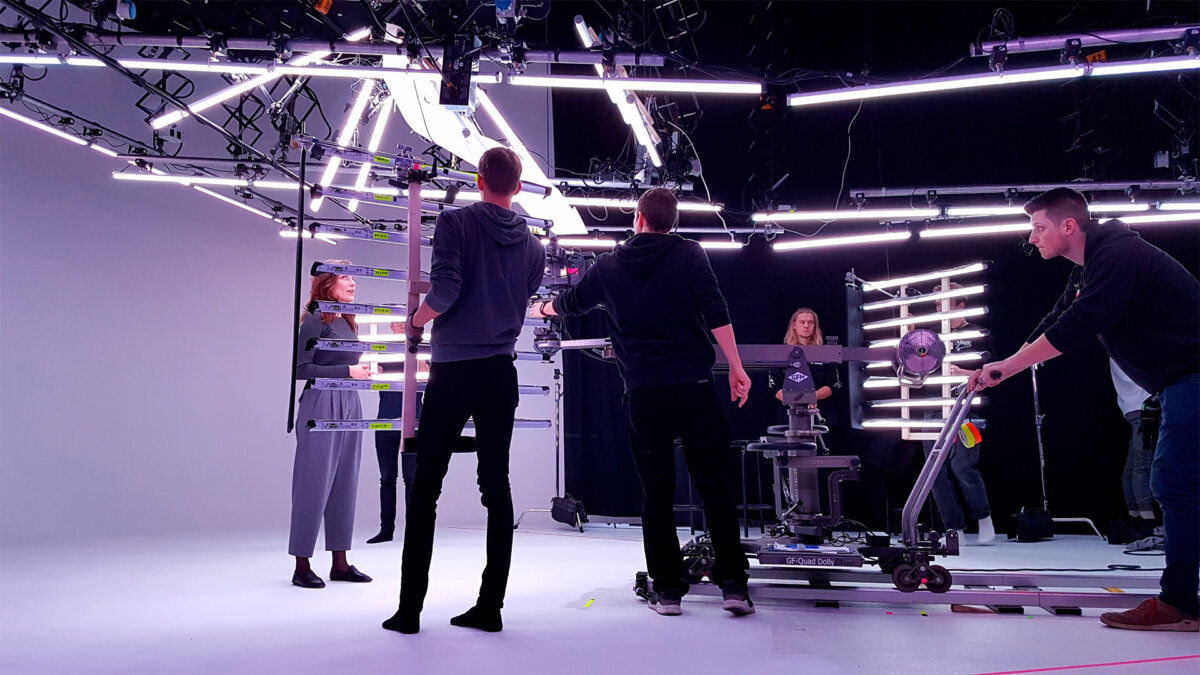

SPECTRA
