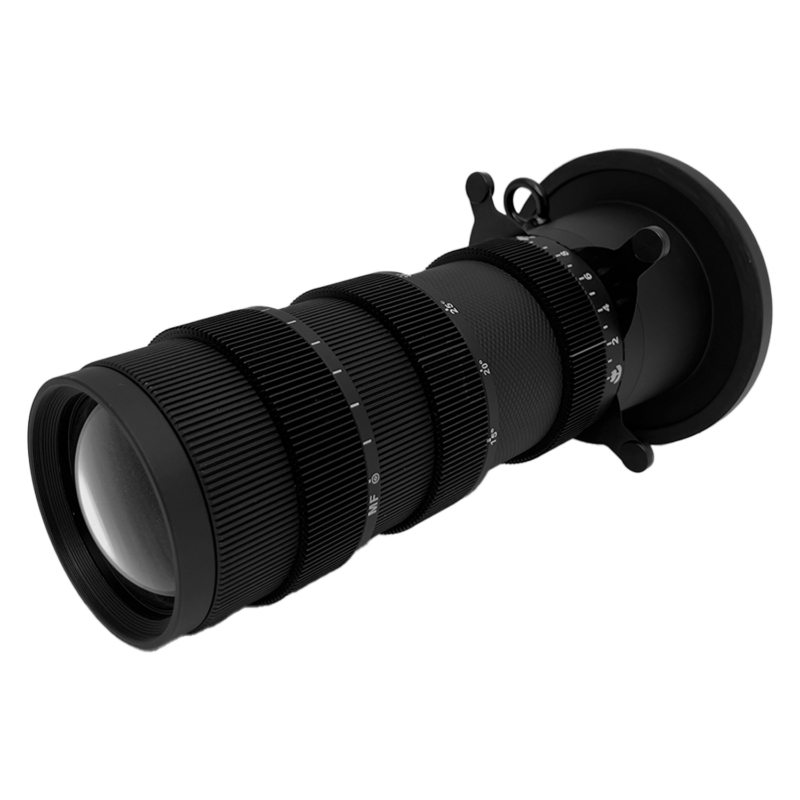

Projection Lens for PlutoFresnel

Technical Specifications

Order Code

AF80-PLS

Beam angle

16° – 36°

Material

Glass, metal and polymer

IP Rating

IP20

Weight

1.987 kg / 4.38 lbs

Gobo Holder

Included

Gobo size

E-Size

Shutter blades

4 on two planes

Dimensions

Ø 125 mm x 244 mm / Ø 4.92" x 9.6"

What's in the Box

  • 1 x ProjectionLens (AF80-PLS)
  • 1 x Lens Cap for ProjectionLens (AF80-PLS-LC)
  • 1 x Kit of four Gobos (AF80-PLS-GB)
  • 1 x Gobo Holder (AF80-PLS-GBH)
  • 1 x Safety Wire (AX-SFT)
