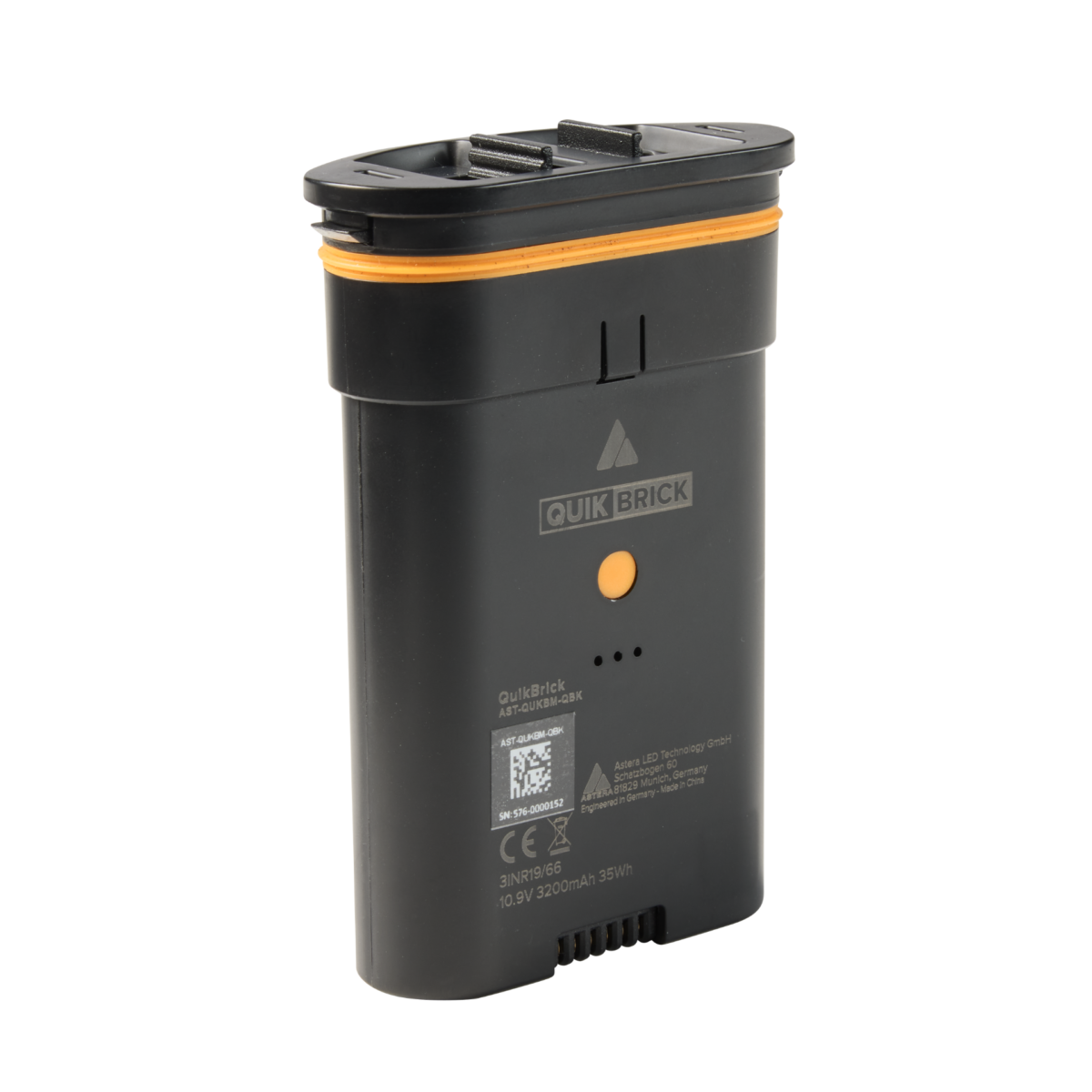

QuikBrick is a swappable battery that becomes fully waterproof when inserted into QuikBeam, designed for uninterrupted workflows and fast rental turnaround.
Swap batteries in seconds, fast-charge them to 80% in 40 min while others stay in use, or configure your own QuikBrick station in the warehouse charging multiple units at once with ChargingDocks. Less downtime. Faster logistics. 100% Wireless and beyond.

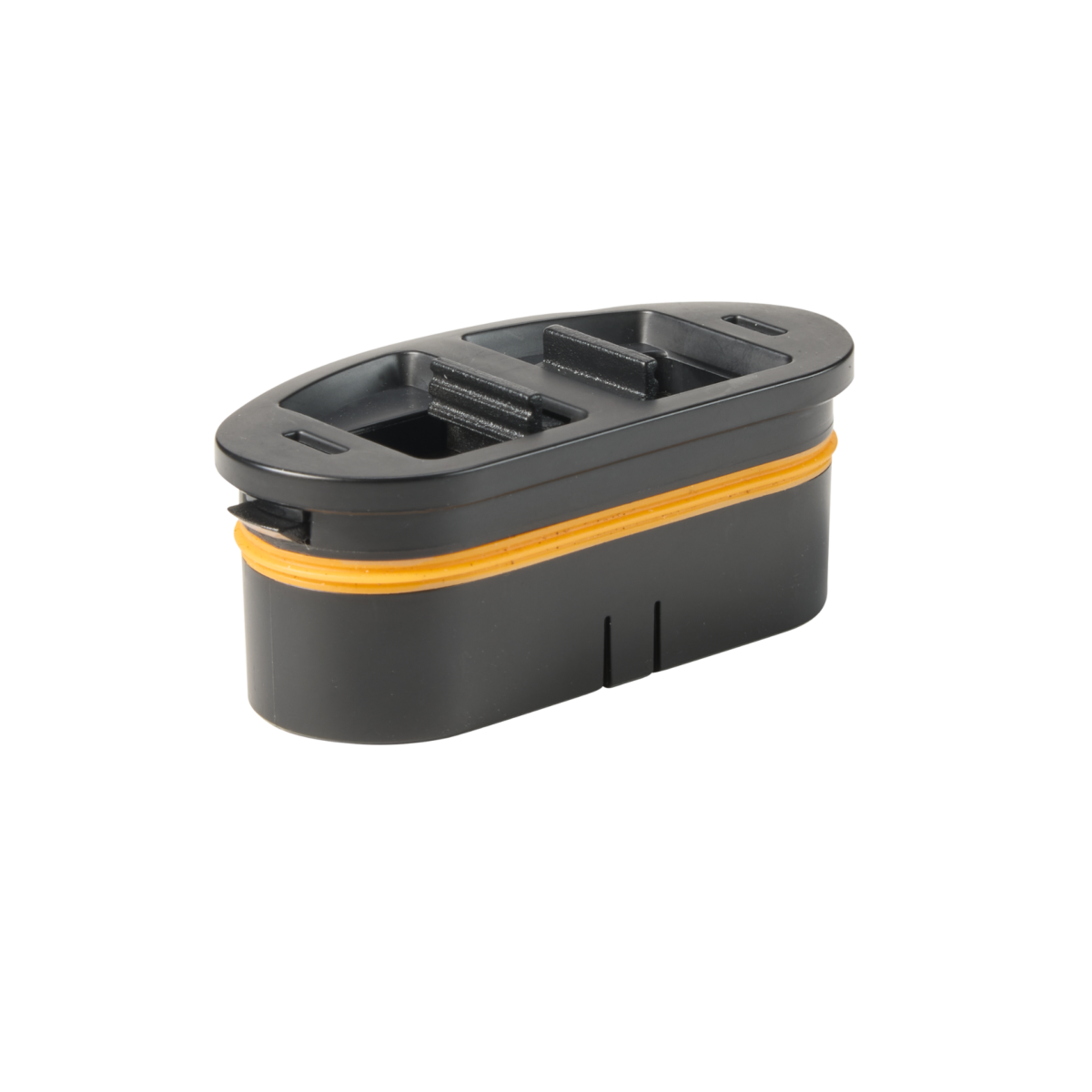

When QuikBeam is wired, the battery can be removed and replaced with the cover only. This reduces overall weight while keeping the fixture fully protected and maintaining its IP65 rating.
Swappable battery for wireless use

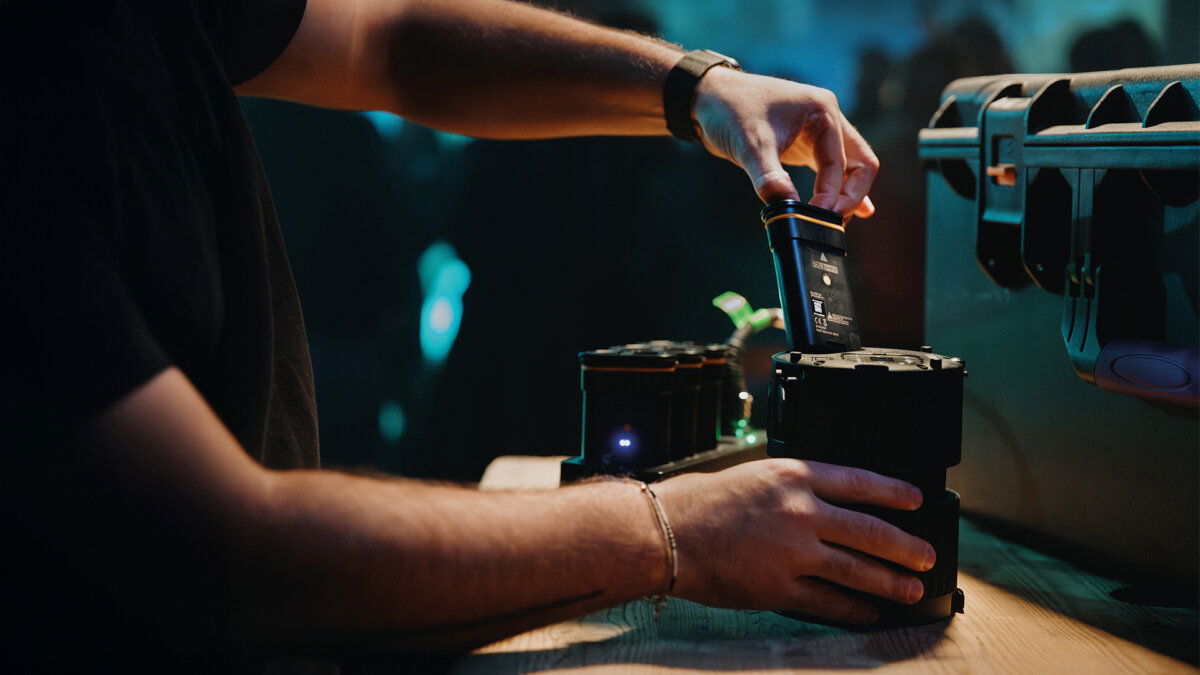

For wireless operation, the battery can be rapidly swapped or installed, enabling efficient rental turnover and flexible power management. Batteries can be charged while others are in use, allowing immediate redeployment with reduced downtime.
An integrated charging level indicator keeps you informed of the battery’s charging status.
Designed to keep workflows moving

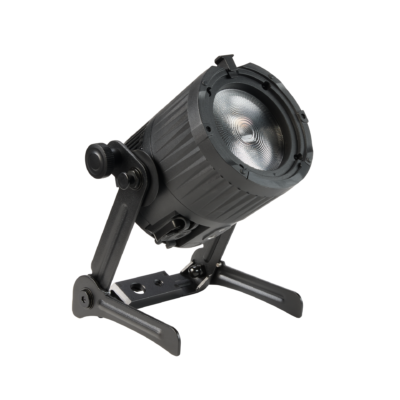

Delivering up to 20 hours of runtime, QuikBeam is ideal for wireless applications, from events and sets to temporary or mobile installations. At maximum brightness, it runs for up to 1 hour 20 minutes. For extended use, QuikBeam can be hard-wired or used with swappable batteries, allowing continuous full-output operation.

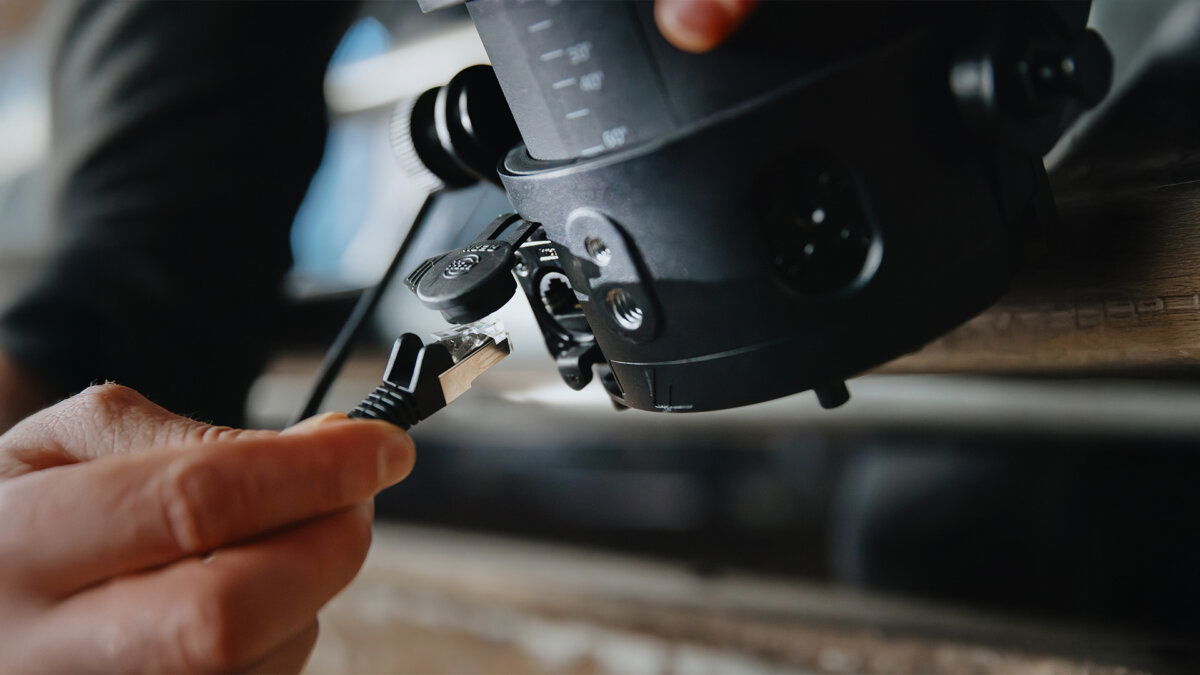

The QuikBrick charges via PoE while docked in the back of QuikBeam, either in the case or directly on the fixture. One cable delivers both power and data.
Choose RJ45 or EtherCON connectors depending on your IP-rating requirements.
The ChargingDock allows charging of up to four QuikBricks and comes with an industry-standard PowerCON TRUE1 connector, facilitating on-location and warehouse managing.

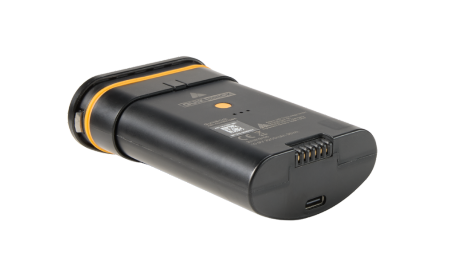

With a USB-C port, QuikBrick can also be charged with nearly any power adapter, and fast-charged via modern smartphone power supplies.
