For QuikBeam

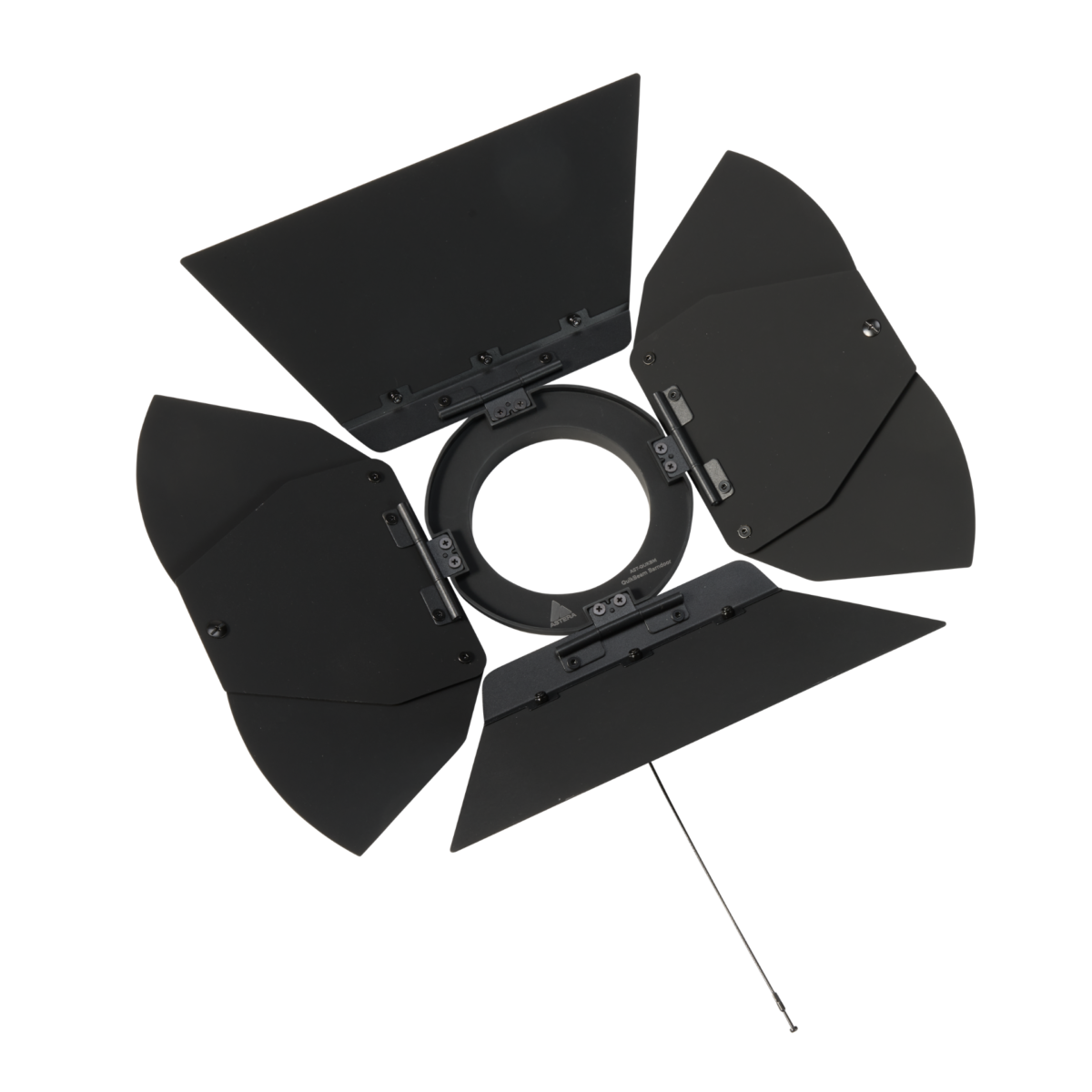

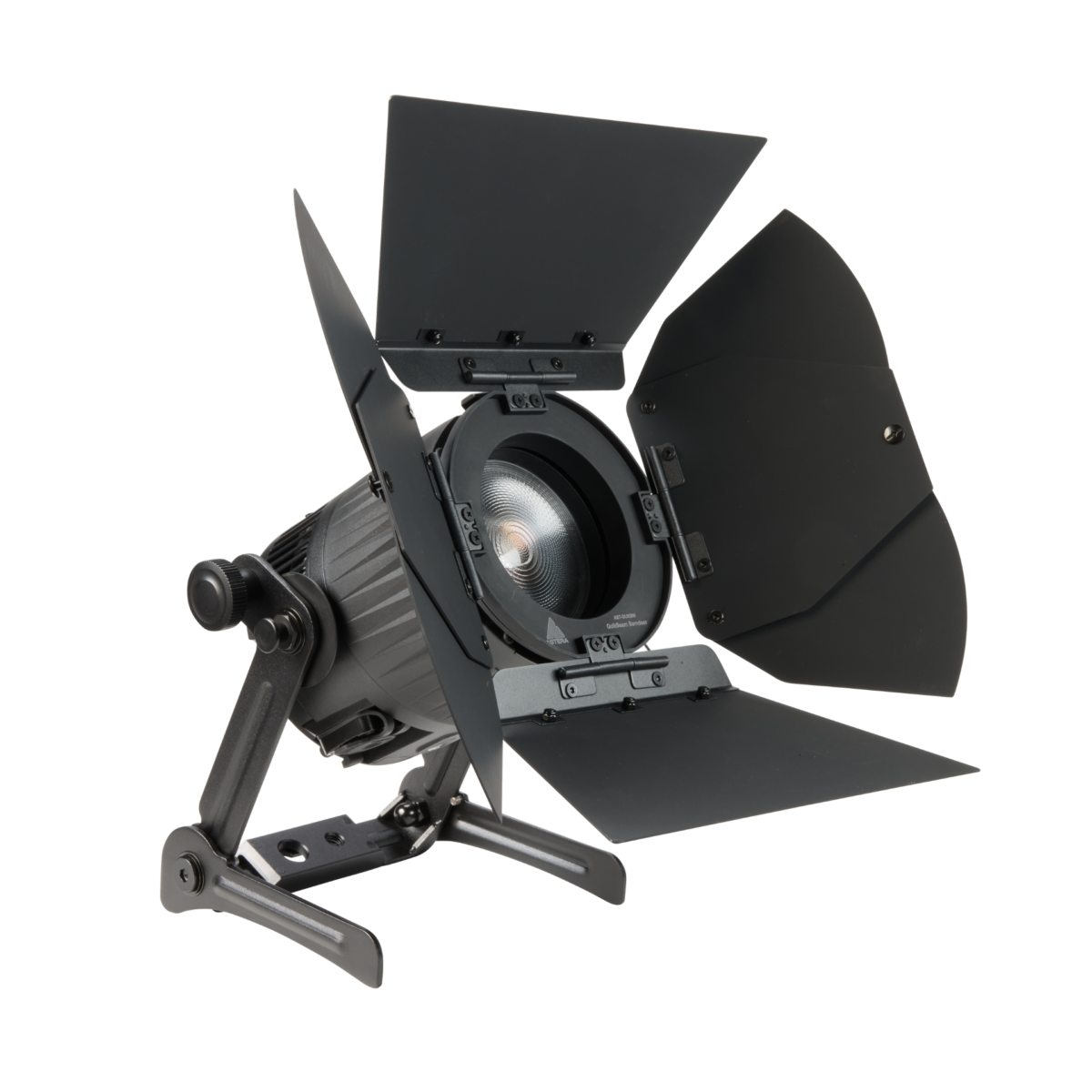

As easy to operate as always, this 8-way Barndoor for QuikBeam delivers precise beam shaping with zero unwanted light spill across the entire zoom range. Featuring a SafetyLink attachment with 360° rotation and premium build quality, it ensures reliable performance in any professional environment.
Barndoor is included in the 2-Unit Backpack Kit as well as the 4-Unit PrepCase Kit, or can be purchased on its own.
Technical Specifications
Order Code | AST-QUKBM-BD |
|---|---|
SafetyLink | Yes |
Weight | 274 g / 0.604 lbs |
Leaves | 8 leaves |
Dimensions mounting ring (inner diameter) | Ø 82 mm / Ø 3.23" |
Dimensions mounting ring (outer diameter) | Ø 120 mm / Ø 4.72" |
Dimensions (L x W x D)(all leaves folded out) | 218 mm x 137 mm x 34 mm / |
All specifications provided are typical values and may be subject to change without prior notice.
Safety Link
Easy, Fast and Safe
All Astera accessories with SafetyLink include an integrated safety wire with the necessary length to connect the accessory and the luminaire. The SafetyLink release system allows to easily introduce the wire in the housing with one hand, and to detach it when the event is finished by pushing a button. This effortless process prevents the need for extra wires in the accessories, but it also allows them to be fully functional when secured: 360º rotation, no problems when zooming in or out, and a discreet look.
