Технические характеристики

Order Codes

AST-BLBSL-E27 AST-BLBSL-E26 AST-BLBSL-B22

LED Engine

Titan LED Engine

Colors

RGBMintAmber

LED Power Draw

15 W

Luminous Flux 2700 K

279 Lumens

Luminous Flux 3200 K

353 Lumens

Luminous Flux 4000 K

347 Lumens

Luminous Flux 5500 K

394 Lumens

Luminous Flux 6500 K

376 Lumens

Light Output 5500 K 15° @ 1m

5228 Lux

Light Output 5500 K 30° @ 1m

1652 Lux

Light Output 5500 K 50° @ 1m

615 Lux

CRI (Ra) / TLCI 3200 – 6500 K*

≥96

Beam Angle

15° – 50°

Field Angle

23° – 73°

Strobe

0 – 25 Hertz

DC Input

9 – 18 VDC – 2.1A

DC Connector

3.5 mm x 1.35 mm

AC Input E27

100 – 240 VAC, 50/60 Hertz, 0.15 A / 230 VAC

AC Input E26

MISSING

AC Input B22

100 – 240 VAC, 50/60 Hertz, 0.15 A / 230 VAC

AC Connector

E26 / E27 / B22

Power Consumption (max.)

16.5 W

CRMX Receiver

Built-in

BluetoothBridge BTB

Built-in

Wireless Protocols

CRMX, UHF, Bluetooth, WiFi

Wireless Range

"CRMX/UHF up to 100 m / 110 yds Bluetooth up to 3 m / 3.3 yds"

RDM Support

Wireless

Infrared Control

Yes

IP Rating unwired

IP20: connected via DC socket IP44: connected via AC + FP5-SP in DC socket

Ambient Operating Temperature

0 – 40 °C / 32 – 104 °F

Weight

433 g / 0.955 lbs

Dimensions (L x W x D) (zoom in)

"114.6 mm x 91.8 mm x 91.8 mm / 4.51"" x 3.61""" x 3.61""" (E26) 117.6 mm x 91.8 mm x 91.8 mm / 4.63"" x 3.61"" x 3.61"" (E27) 116.2 mm x 91.8 mm x 91.8 mm / 4.57"" x 3.61"" x 3.61""(B22)"

Dimensions (L x W x D) (zoom out)

"134.6 mm x 91.8 mm x 91.8 mm / 5.3"" x 3.61"" x 3.61"" (E26) 137.6 mm x 91.8 mm x 91.8 mm / 5.42"" x 3.61"" x 3.61"" (E27) 136.2 mm x 91.8 mm x 91.8 mm/ 5.36"" x 3.61"" x 3.61"" (B22)"

Mounting Options

3/8" – 16 UNC thread, 1/4" – 20 UNC thread, E26/E27/B22 socket

All specifications provided are typical values and may be subject to change without prior notice.

Что внутри?

Доступные версии

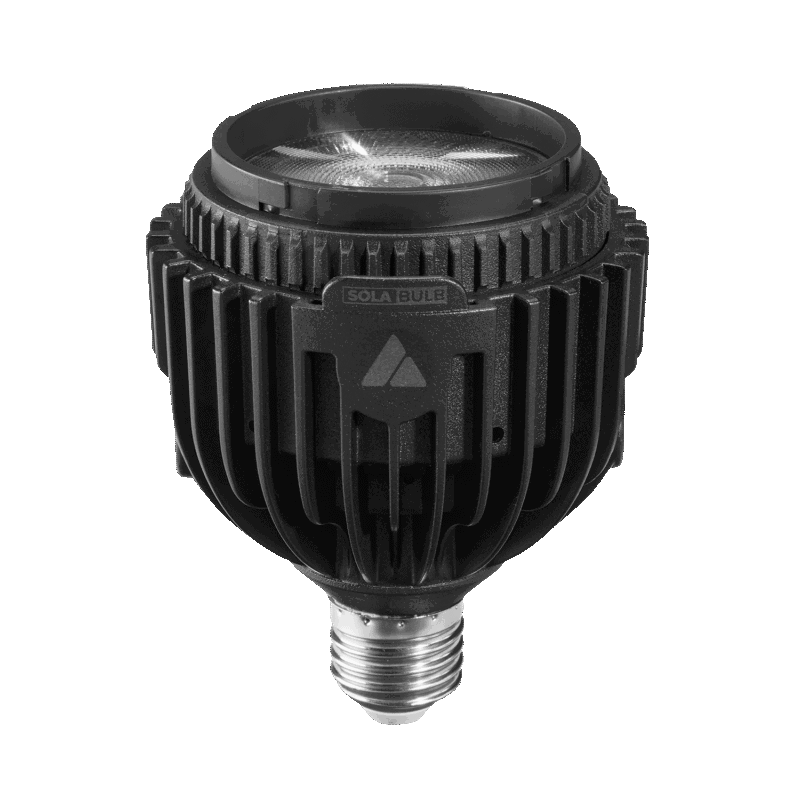

  • SolaBulb with E26 Thread (AST-BLBSL-E26)
  • SolaBulb with E27 Thread (AST-BLBSL-E27)
  • SolaBulb with B22 Thread (AST-BLBSL-B22)

Типовые спектры

Радиочастотные характеристики

Wireless Modules

Modulation

ERP (Transmitter)

Channel Count

EU: UHF***(863-870 MHz)

FHSS

< 25 mW

47

USA: UHF (917-922.20 MHz)

FHSS

< 25 mW

53

AUS: UHF (922.30-927.50 MHz)

FHSS

< 25 mW

53

SGP: UHF (920.50-924.50 MHz)

FHSS

< 25 mW

41

KOR: UHF (917.9-921.5 MHz)

FHSS

< 25 mW

10

RUS: UHF (868.75-869.12 MHz)

FHSS

< 25 mW

6

JPN: UHF (922.80-926.40 MHz)

FHSS

< 25 mW

19

CRMX (2402-2480 MHz)

FHSS

< 100 mW

79

Bluetooth 5.0 LE (2402-2480 MHz)

FHSS

10 mW (BLE)

40

WiFi (2412-2472 MHz)

DSSS, OFDM

< 100 mW

13

***General allocation of frequencies for use by short-range radio applications

Frequency range in MHz1)

Maximum equivalent radiant power (ERP)

Additional parameters / frequency access and interference mitigation techniques

865 – 868

25 mW

Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 1% can be used.

868,0 – 868,6

25 mW

Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 1% can be used.

868,7 – 869,2

25 mW

Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 0.1% can be used.

869,40 – 869,65

500 mW

Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 10% can be used.

869,7 – 870,0

25 mW

Requirements for frequency access and mitigation techniques3) Alternatively, a maximum duty cycle2) of 1% can be used.

"1) The use of adjacent frequency bands within this table as a single frequency band is permitted, provided that the specific conditions for each of these adjacent frequency bands are met. 2) „duty cycle“ means the ratio of Σ(Ton)/(Tobs) expressed as a percentage, where ‚Ton‘ is the ‚on-time‘ of a single transmitting device and ‚Tobs‘ is the observation period Ton is measured in an observation frequency band (Fobs). Unless otherwise specified in this general allocation, Tobs is a continuous period of one hour and Fobs is the applicable frequency band in this general allocation (table). 3) Frequency access and interference mitigation techniques shall be used whose performance level at least meets the essential requirements of Directive 2014/53/EU or the Radio Equipment Act (FuAG). Where relevant techniques are described in harmonised standards, the references of which have been published in the Official Journal of the European Union pursuant to Directive 2014/53/EU, or parts thereof, performance shall be ensured which is at least equivalent to those techniques."
